Description

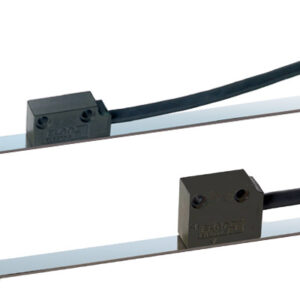

MECHANICAL DATA of the ELGO LMIX2-000-02.0-1-01 Encoder:
| Measuring principle | incremental |
| Repeat accuracy | ± 1 increment |
| System accuracy in µm at 20 °C | ± (25 + 20 x L), L= measuring length in meters |
| Distance sensor / tape | max. 2.0 mm |
| Sensor housing material | zinc die cast |
| Housing dimensions (L x W x H) | 30 x 12.5 x 25 mm |
| Required magnetic tape | MB20-50-10-1-R |
| Pole pitch | 5 mm |
| Max. measuring length | theoretically unlimited |
| Connections | open cable ends |
| Sensor cable | 1.5 m standard length, others on request, drag chain suitable |
| Sensor cable bending radius | 60 mm |
| Weight | approx. 35 g, each without cable, cable: approx. 60 g/m |
ELECTRICAL DATA
| Power supply voltage | 10 … 30 VDC or 5 VDC |
| Residual ripple | 10…30 VDC: <10 %, 5 VDC: ± 25 mV |
| Current consumption | 10 … 30 VDC: max. 150 mA, 5 VDC: max. 200 mA |
| Output signals | A, A’, B, B’, Z, Z’ |
| Output levels | HTL or TTL |
| Output current per channel | max. 20 mA |
| Resolution (at 4 edge evaluation) | 0.025 mm |
| Index pulse | every 5 mm (periodically), |
| Max. output frequency per channel | 100 kHz |
| Operating speed | 5 m/s |
| Max. rotation speed | 300.000 U/min per number of pole pairs |
ENVIRONMENTAL CONDITIONS
| Storage temperature | -25 … +85 °C |
| Operating temperature | -10 … +70 °C, -25… +85 °C on request |
| Humidity | 95 %, non-condensing |
| Protection class | IP67 |
