Description

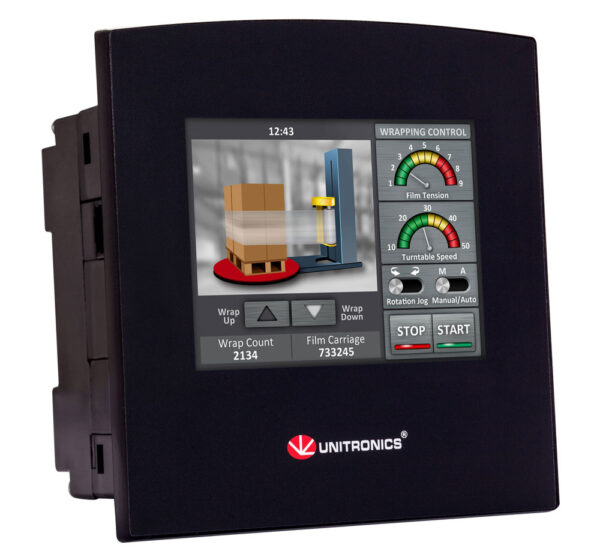

The Samba SM35-J-RA22 Touch Screen PLC from Unitronics is a full function programmable logic controller (PLC) with a built-in high resolution, full colour 3.5″ touchscreen & onboard I/O configurations.
Also offering 12 Digital Inputs, including 1 HSC/Shaft-encoder Input, 2 Analog Inputs, 2 PT100/TC Inputs, 8 Relay Outputs, 2 Analog Outputs and a significant number of communications options, the SM35-J-RA22 is one of the best value touchscreen products in the Unitronics PLC range.
In addition, the Samba PLC & HMI offers an extremely low total cost of ownership as a result of it being programmed using the free to download Visilogic All-in-One programming environment which offers simple, fast development for both Ladder and HMI applications.
Finally, the Unitronics Samba PLC range including the SM35-J-RA22 has many additional features including :
-
- Ladder logic and HMI software (licence free download)
- Up to 24 user designed screens and 500 images
- Full colour HMI graphs with colour-code trends with additional built-in alarm screens
- Recipe programs and data logging via Data Tables
- Send email function and SMS messaging via GPS
- Remote access capability and further support for GPRS and GSM
- TCP/IP, MODBUS, BACnet, KNX, M-bus, CANbus: CANopen, UniCAN, SAE J1939
- Onboard I/O, however additional ports may be added: 1 Serial (RS232/RS485) / Ethernet & CANbus
- 24 VDC power supply
- Rated to IP66
Find out more about the full range of Unitronics Samba PLC & HMIs here.
For further detailed information download:
Installation Guide
Technical Specification
Visilogic? Software
