JZ20-J-T40 Jazz HMI & Keypad

Call for Price

Call for Price

Features: 16 Digital, 2 D/A, 2 Analog Inputs, 20 Transistor Outputs

SKU: JZ20-J-T40 Category:

Description

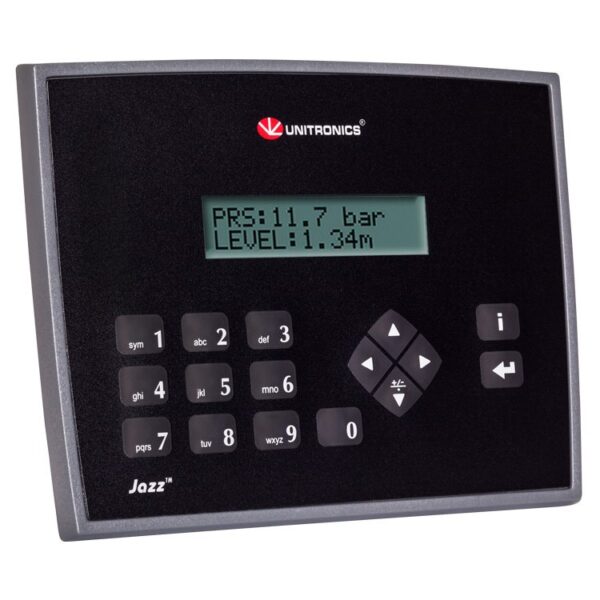

The Jazz JZ20-J-T40 PLC from Unitronics is a full function micro PLC with built in I/Os and text display that is specifically designed to control small machines and to perform automation tasks of low to medium complexity.

Also offering 16 Digital, 2 D/A, 2 Analog Inputs, 20 Transistor Outputs and many features normally found in much more expensive programmable controllers, the JZ20-J-T40 is one of the most popular small PLCs in the Unitronics PLC range.

In addition, the Jazz PLC & HMI offers an extremely low total cost of ownership as a result of it being programmed by the licence free to download U90™ Ladder Logic software.
Finally, the Unitronics Jazz PLC range including the JZ20-J-T40 has many additional features including :



  • Ladder logic software (licence free download)
  • 4 loops of auto-tuning PID (depending on Jazz PLC model)
  • Real time clock
  • SMS messaging via GPS
  • MODBUS communications
  • Remote access capability
  • Direct temperature inputs (depending on Jazz PLC model)
  • High-speed counters and PWM outputs (depending on Jazz PLC model)
  • Support for over 15 languages and 20 graphic symbols
  • PC access via MODBUS or OPC sever
  • Up to 40 built in I/Os
  • 24 VDC power supply
  • Rated to IP65

For further detailed information download:

Installation Guide
Technical Specification
U90 Ladder? Software

Additional information

Product Type

Analog Inputs

Digital Inputs

Transistor Outputs

Screen Size

Product Name
