V200-18-E5B <br>Snap On I/O for Unitronics Vision

£153.00

£153.00

The V200-18-E5B Snap on I/O includes: 18 isolated digital inputs (including 2 high-speed), 3 analog inputs, 4 temperature inputs and 15 transistor outputs ( including 2 high-speed)

SKU: V200-18-E5B Category:

Description

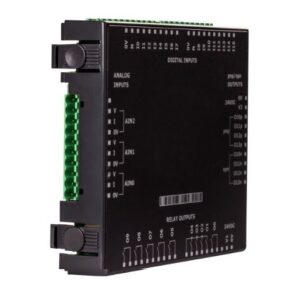

The V200-18-E5B Snap on I/O plugs directly into the rear of compatible Unitronics Vision PLCs to create a self contained PLC unit with a local I/O configuration.

Features include:

  • 18x isolated digital inputs, includes 2 H.S.C inputs, type pnp/npn (source/sink)
  • 3x analog (0-10 V, 0-20mA, 4-20mA, 10-bit) inputs
  • 15x isolated pnp/npn (source/sink) transistor outputs, includes 2 high speed outputs
  • 4x isolated analog/PT100/TC inputs

For further information:
Download the Technical Specification and Installation Guide

Additional information

Product Type

Product Name

Digital Inputs

Analog Inputs

Temperature Input

Transistor Outputs

Analog Outputs

Relay Outputs
