Related products

•

  Features: 9 Digital, 2 Digital/Analog 1 Analog, 1 TC/PT100 Inputs, 5 Relay, 1 Transistor Outputs

  JZ20-J-UN20
  Jazz HMI & Keypad

  £195.00 ex VAT

  Add to basket
•

  Vision570™
  I/O Options
  Snap-in I/O Modules	Plug these modules directly into the back of the Vision unit to create a self-contained PLC with up to 62 I/Os. Inputs may include Digital, Analog and Temperature measurement. Outputs may include Transistor, Relay or Analog. (sold separately)
  I/O Expansion	Local or Remote I/Os may be added via expansion port or via CANbus. Expand up to 1000 I/Os — see I/O Expansion Modules below
  Program
  Application Memory	Application Logic: 2MB · Images: 16MB · Fonts: 1MB
  Scan Time	9µsec per 1K of typical application
  Memory Operands	8192 coils, 4096 registers, 512 long integers (32-bit), 254 double words (32-bit unsigned), 64 floats, 384 timers (32-bit), 32 counters. Additional non-retainable operands: 1024 X-bits, 512 X-integers, 256 X-long integers, 64 X-double words
  Data Tables	120K dynamic RAM data (recipe parameters, datalogs, etc.), up to 256K fixed data
  SD Card (Micro)	Store datalogs, Alarm History, Data Tables, Trend data, export to Excel • Back up Ladder, HMI & OS, clone PLCs

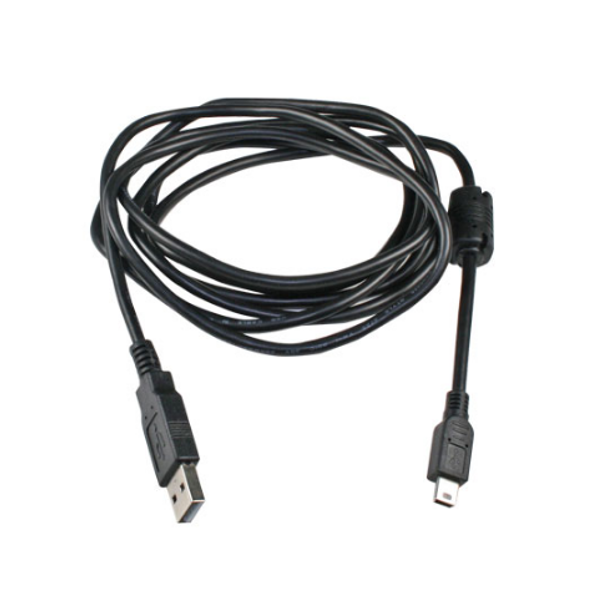

  USB	1 USB programming port (Mini-B)
  Enhanced Features	Trends: graph any value and display on HMI • Built-in Alarm management system• String Library: instantly switch HMI language
  Operator Panel
  Type	TFT LCD
  Display Backlight Illumination	White LED
  Colours	65,536 colours, 16 bit resolution · Brightness- Adjustable via touchscreen or software
  Display Resolution & Size	320 x 240 pixels (QVGA), 5.7”
  Touchscreen	Resistive, Analog
  keys	Virtual Keypad
  General
  Power Supply	12/24VDC
  Battery	7 years typical at 25°C, battery back-up for all memory sections and RTC
  Clock	Real-time clock functions (date and time)
  Environment	IP66/IP65/NEMA4X (when panel mounted)
  Standard	CE, UL  Many of our products are also  UL Class 1 Div 2 and  GOST certified  -  please contact Unitronics

  Vision570™

  Call for Price

  Read more
•

  The Jazz JZ20-T40 PLC from Unitronics is a full function micro PLC with built in I/Os and text display that is specifically designed to control small machines and to perform automation tasks of low to medium complexity. Also offering 16 Digital, 2 D/A, 2 Analog Inputs, 20 Transistor Outputs and many features normally found in much more expensive programmable controllers,  the JZ20-T40 is one of the most popular small PLCs in the Unitronics PLC range. In addition, the Jazz PLC & HMI offers an extremely low total cost of ownership as a result of it being programmed by the licence free to download U90™ Ladder Logic software. Finally, the Unitronics Jazz PLC range including the JZ20-T40 has many additional features including :

  • Ladder logic software (licence free download)
  • 4 loops of auto-tuning PID (depending on Jazz PLC model)
  • Real time clock
  • SMS messaging via GPS
  • MODBUS communications
  • Remote access capability
  • Direct temperature inputs (depending on Jazz PLC model)
  • High-speed counters and PWM outputs (depending on Jazz PLC model)
  • Support for over 15 languages and 20 graphic symbols
  • PC access via MODBUS or OPC sever
  • Up to 40 built in I/Os
  • 24 VDC power supply
  • Rated to IP65

  Find out more about the full range of Unitronics Jazz PLC & HMIs here.  For further detailed information download: Installation Guide Technical Specification U90 Ladder™ Software

  JZ20-T40 PLC | Unitronics Jazz HMI & amp; Keypad, 16 Digital, 2 D/A, 2 Analog Inputs, 20 Transistor Outputs

  £142.50 ex VAT

  Add to basket
•

  Features: Full colour 7.0" touchscreen, onboard I/O (10 Digital, 2 D/A Inputs, 8 Relay Outputs)

  SM70-J-R20
  Samba 7.0″ Touch Screen PLC & HMI

  £366.00 ex VAT

  Add to basket
